YQL series gas-fired thermal fluid heater

YQL series gas-fired thermal fluid heater

Available industries: Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries.

Available fuel: natural gas, coke oven gas, bio-gas;

Working pressure: 0.8-1.0MPA;

Product thermal power: 7000-29000KW;

Output water temperature: 320°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

YQL series gas and oil-fired thermal fluid heater adopts 3-trips round coil tube structure. The coil tube end adopts beam port to effectively protect the furnace all at boiler end, is equipped with advanced combustion device, and with fully automatic operation. After furl ignition from burner, it forms a flame full fill into the round furnace tube, and through the furnace tube wall, the heat is transferred by radiation, which is the first pass. The high temperature flue gas after combustion gathers at rear furnace door and then turns into the second trip, which is convection tube area.

After convection heat exchange, the flue gas temperature is going lower and comes to front furnace door, and from here it turns into the third trip ether into the tube bundle area, then through economizer its emitted into atmosphere through chimney.

Feature

1. Heater is wholly assembled and delivery, it is easy for installation, commission and operating.

2. External side adopts good insulation material, outside use stainless steel plate, which can mostly reduce heat lost, make working environment better.

3. Before delivery, the residue moisture is removed completely, so the system draining period is reduced to 2 days from 12 days.

4. The inner coil pipe has bigger flow amount, so it is more stable under high temperature operation.

5. The laying-off of steel tube adopts CNC 3D laser cutting machine.

6. The manufacture of serpentuator adopts serpentuator automatic production line, once-forming.

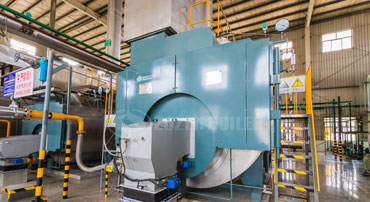

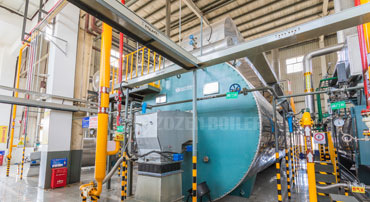

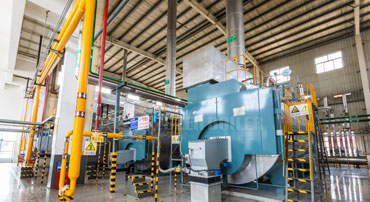

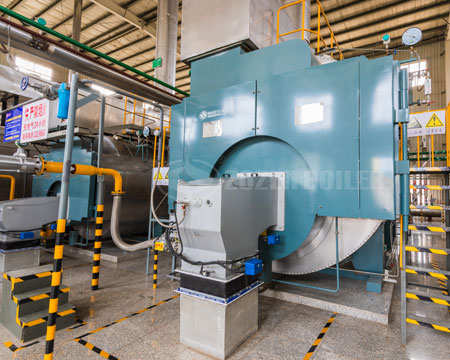

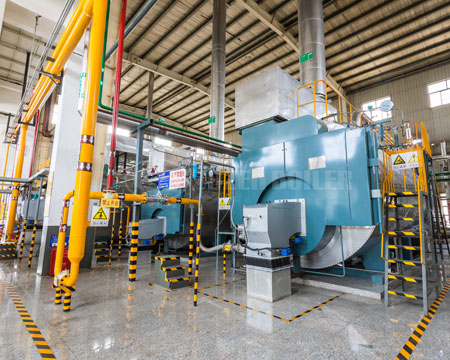

case image
Product Specifications
Model Y-14000Q YQL-16500Q YQL-18000Q YQL-21000Q YQL-23300Q YQL-26000Q YQL-29200Q
Rated heating load(KW) kW 14000 16500 18000 21000 23300 26000 29200
x104kcal/h 1200 1400 1600 1800 2000 2200 2500
Desigen working temperature(≤°C) 320 320 320 320 320 320 320
Rated working pressure(MPa) 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Heat efficiency(≥%) 80 80 80 81 81 81 81
System installed
capacity(KW)
320 380 450 520 600 700 825
Expansion slot m3 20 30 30 30 30 30 30
oil cistern m3 30 40 40 60 80 80 80
