SHL series bulk biomass-fired steam boiler

SHL series bulk biomass-fired steam boiler

Available industries: Heating, Chemical, Food, Rubber, Feed.

Available fuel: Coal, Biomass;

Working pressure: 1.25-2.5 MPA;

Thermal power: 10-35t/h;

Output water temperature: 180-400°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

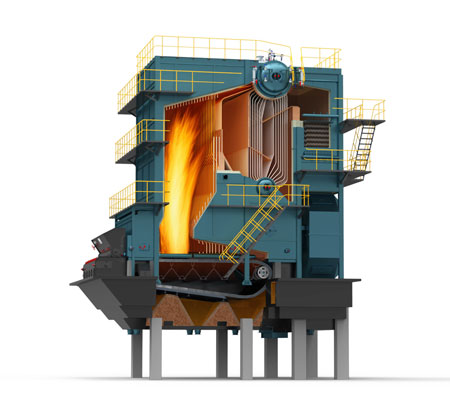

Series of SHL boiler is bulk industrial boiler with dual boiler cylinders and transverse arranged. The boiler's hearth consists of front, rear, left and right water wall, the body consists of an upper, a lower drum and convection pipes. There are an economizer and an air preheater at the tail. The combustion equipment is squama grating, free timing control. Exit shop in bulk type for site assembly and construction.

SHL series bulk hot water boilers are double boilers with simple transverse arrangement. The natural circulation coal-fired water-pipe boilers are arranged horizontally to form vertical hearth with upper and lower drums and water wall tubes, and the convection tube cluster boxes are used to form the main body of the boilers. The tail is equipped with economizer, air preheater, combustion equipment is scaly grate, stepless speed control, bulk out of the factory, on-site assembly and masonry, and flue gas flow is multi-return.

Feature

1. The type of boiler has the following characteristics: sufficient output, rapid temperature rise, high thermal efficiency, applicable for extensive varieties of coal, safe and reliable, etc.

2. The boiler has super capacity.

3. Fast heating, high thermal efficiency and small occupation of land; scale type non-leaking grate is used in grate, which greatly improves the reliability of operation and is suitable for a wide range of coal; arch wall can be cast.

4. Good sealing performance, improved ignition conditions, environmental protection, energy saving, strong combustion; high degree of automation, smooth operation, safety and reliability, high service life.

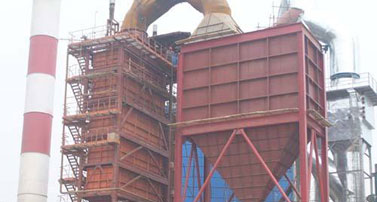

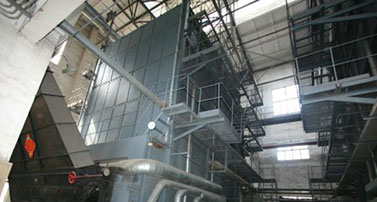

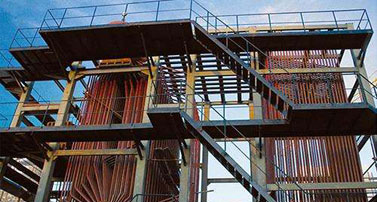

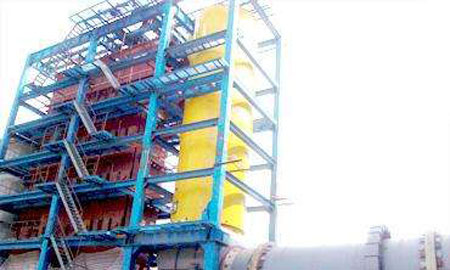

case image
Product Specifications
Model SHL10-1.25-M
SHL10-1.60-M
SHL10-2.45-M
SHL15-1.25-M
SHL15-1.60-M
SHL15-2.50-M
SHL20-1.25-M
SHL20-1.60-M
SHL20-2.50-M
SHL25-1.25-M
SHL25-1.60-M
SHL25-2.50-M
SHL30-1.25-M
SHL30-1.60-M
SHL30-2.50-M
SHL35-1.25-M
SHL35-1.60-M
SHL35-2.50-M
Rated evaporation capacity (t/h) 10/ 15/ 20/ 25/ 30 35
Pressure (MPa) 1.25/1.6/2.45/ 1.25/1.6/2.5/ 1.25/1.6/2.5/ 1.25/1.6/2.5/ 1.25/1.6/2.5/ 1.25/1.6/2.5
Steam temperature/Rated output water temperature (°C) 194/204/225/ 194/204/225/ 194/204/225/ 194/204/225/ 194/204/225/ 194/204/225
Feed water/return water temperature (°C) 105 105 105 105 105 105
Available Fuel Biomass Biomass particle fuel
Low heating value(KJ/kg) 16240
Thermal efficiency (%) 81.0 81.0 81.5 81.6 82.0 82.0
Fuel consumption (kg/h) 1860 2790 3720 4650 5580 6510
