SZL series coal-fired steam boiler

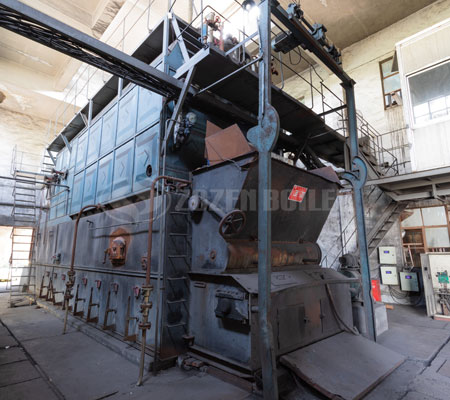

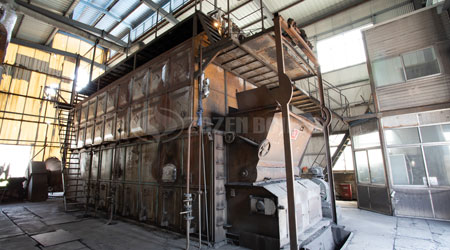

SZL series coal-fired steam boiler

Available industries: Heating, Chemical, Food, Tobacco, Textile, Print and dyeing, Feed, Medicine, Building materials, Wine, Hospital.

Available fuel: Bituminous Coal, Lean Coal, Anthracite;

Working pressure: 1.0-2.5 MPA;

Thermal power: 4-35t/h;

Output water temperature: 184-350°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

SZL series vertical dual drums chain grate water pipe steam and hot water boiler, adopts quick fitting and assembly structure. The 4-6t/h boiler is of quick fitting pipe structure, exit shop after completely assembled, the boiler of 6-35t/h is composed of 2 main components.

The upper assembled components is the body heat accepting part, and the lower assembled component is of combustion equipment. The former part of the boiler body is arranged an water cooling wall, the upper part of it is connected to boiler cylinder, and its lower part is connected to collective chest, so as to form a combustion room and absorb the radiated heat from the furnace. Its rear part is arranged with dense convection pipes between upper and lower boiler cylinders.

The high temperature smog after combustion shall stand for twice returning flushing transversely to the heat accepting surfaces, and shall be introduced to coal saver singly arranged, and flow into duster and exhausted from chimney in the end.

Feature

1. Steel pipe cutting, thread pipe pressing and convection pipe processing adopt advanced CNC process.

2. The chain grate panel, front and rear smoke chamber panel adopts CNC plasma cutting machine to cut orderly and beautifully.

3. According to different capacity, different numbers of independent wind bins are set from front to back of the grate.

4. Intake air secondary, disturb fuel gas in the furnace, to ensure the fuel fired totally. The independent secondary draft fan make it easy to control and adjust the wind and wind pressure.

5. Graded air supply and special furnace arch structure make the NOx emissions down to 100mg/m³.

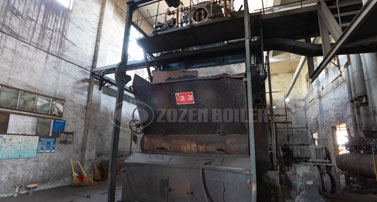

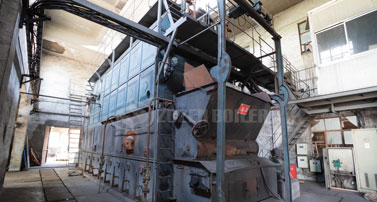

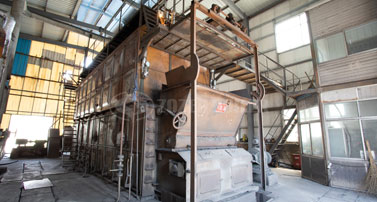

case image
Product Specifications
Model
SZL4.2-1.0/115/70-M

SZL5.6-1.0/115/70-M
SZL5.6-1.25/130/70-M

SZL7.0-1.0/115/70-M
SZL7.0-1.25/130/70-M

SZL14-1.0/115/70-M
SZL14-1.25/130/70-M

SZL21-1.0/115/70-M
SZL21-1.25/130/70-M
Rated thermal power(MW) 4.2 5.6 7.0 14 21
Rated working pressure(MPa) 1.0 1.0/ 1.25 1.0/ 1.25 1.0/ 1.25 1.0/ 1.25
Rated output water temperature(°C) 115 115/130 115/130 115/130 115/130
Return water temperature(°C) 70 70 70 70 70
Heating area (m²) body Radiation 24.5 26.1 23.4 61.5 109.21
Convection 119.0 184.0 227.9 346.2 549.8
economizer(m²) 130.8 130.8 244.16 472.0 330.4
Effective area of great(m²) 7.62 10.5 11.8 20.8 28.1

Available fuel
Biomass AII\P\
Low heating value(KJ/kg) 21000
Fuel consumption(kg/h) 1122 1488 1860 3600 4340
Thermal efficiency(%) 82.8 83.2 83.2 85.8 86.0
Weight of biggest part for transportation(t) 21 25 28 30 31
Overall dimension of boiler assembled LxWxH (m) 7.0x2.7x3.5 6.9x3.2x5.3 7.9x3.3x3.5 11.0x3.2x3.5 9.9x3.3x3.6
