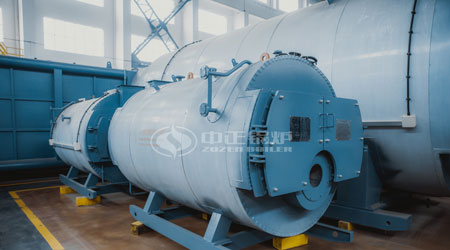

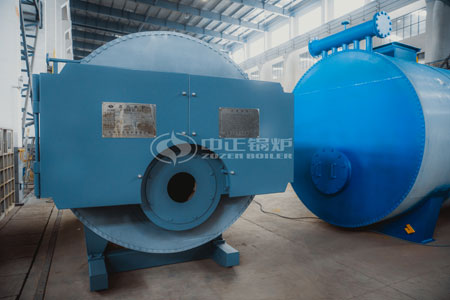

WNS series gas-fired (oil-fired) steam boiler

WNS series gas-fired (oil-fired) steam boiler

Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

Available fuel: Nature gas, coke oven gas, biogas, methanol, etc;

Working pressure: 0.7-2.5 Mpa;

Product thermal capacity: 0.5-20 t/h;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Feature

1.The key part such as material cutting, rolling, drilling are proceeded by advanced CNC machining process to reduce the assemble stress and extend boiler working lifetime.

2.Smoke tube and tube sheet connection is expanded first to eliminate the gap between them, then adopt automatic argon arc welding to relief the stress and expand boilers working life.

3.Fin tube us ND steel or stainless-steel material which avoid low temperature corrosion.

4.High quality aluminum silicate fiber is used with fire clay insulation, to control the boiler body temperature below 45 degree to control heat lost.

5.Condenser is added to reuse the waste heat of the exhausted smoke to increase feeding water’s temperature and reduce emission temperature, which can increase the thermal efficiency above 98% and save operating cost.

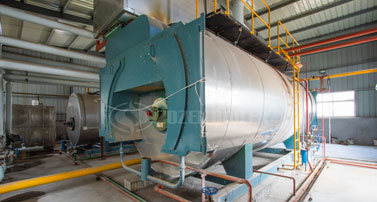

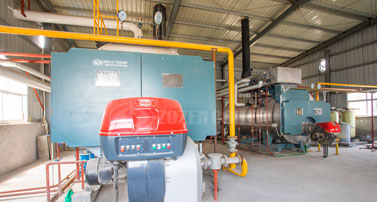

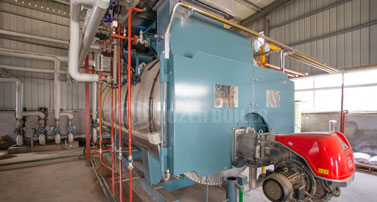

case image
Product Specifications
Model WNS1-0.7-Y(Q)
WNS1-1.0-Y(Q)
WNS1.5-1.0-Y(Q)
WNS1.5-1.25-Y(Q)
WNS2-1.0-Y(Q)
WNS2-1.25-Y(Q)
WNS3-1.0-Y(Q)
WNS3-1.25-Y(Q)
WNS4-1.25-Y(Q)
 WNS4-1.6-Y(Q)
WNS5-1.25-Y(Q)
 WNS5-1.6-Y(Q)
Rated steam capacity (t/h) 1 1.5 2 3 4 5
Rated working pressure(Mpa) 0.7/1.0 1.0/1.25 1.0/1.25 1.0/1.25 1.25/1.6 1.25/1.6
Rated Steam temperature(°C) 170/184 184/194 184/194 184/194 194/204 194/204
Feed water temperature(°C) 20 20 20 20 20 20
Heating area(m²) proper 24.06 27.33 58.15 89.99 112.59 163.1
Condenser 15.4 20.5 29.64 45.6 53.54 65.89
Thermal efficiency(%) >98 >98 >98 >98 >98 >98
Fuel available Natural gas,biogas,coke gas,methanol,light oil etc.
Combustion equipment burner
Total power(KW) 3.6 4 .8 7.0 10.5 13 16.5
Feed pump model JGGC2-8×16 JGGC2-8×16 JGGC2.4-8×18 JGGC4-8×18 JGGC4.8-8×22 JGGC6-8×18
Fuel consumption Natural gas 72 108 144 216 288 360
Light oil 66 99 113 196 266 332
Weight of biggest part for transportation(t) 4 4.5 8.5 8.9 13.3 14.3
Overall dimension of boiler assembled(m)(L×W×H) 3.25×1.8×2.1 3.0×1.8×2.01 4.4×2.1×2.46 4.6×2.31×2.62 4.7×2.48×2.85 5.33×2.65×3.3
