YLW series coal-fired thermal fluid heater

YLW series coal-fired thermal fluid heater

Available industries: Chemical, fertilizer, melamine, alumina and other high temperature heating technology.

Available fuel: Bituminous coal, soft coal, biomass particles;

Working pressure: 0.8-1.0MPA;

Product thermal power: 1400-29000KW;

Output water temperature: 320°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

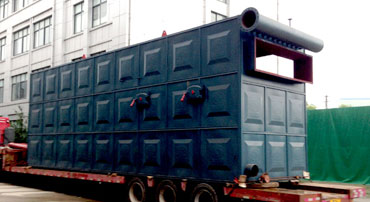

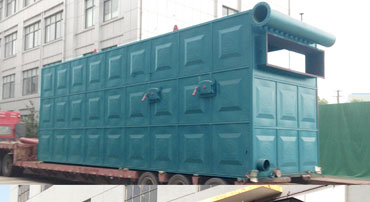

YLM thermal fluid heater is square coil horizontal chain stoker assembly heater, chain stoker and heater body are transferred separately.

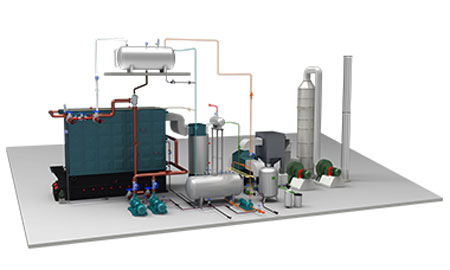

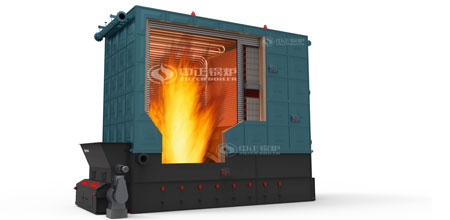

It adapts chain stoker to realize mechanical feeding coal, mechanical venting by blower and exhaust fan, and mechanical discharging by slag machine.Fuel fall on the stoker by coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air pre-heater, at last enters dust collector then vented into the atmosphere through chimney by exhaust fan.

Feature

1. The manufacture of square coil tube adopts CNC three-dimensional tube bending machine, no forced shaping.

2. Square coil tube and coil tube all adopt argon arc welding technique,which guarantees tubes are 100% qualified.

3. Flame-proof feeding bucket can avoid the feeding bucket is burnt and coking.

4. Furnace adopts double close line coil, which makes heating surface sufficient.

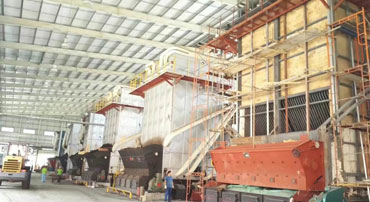

case image
Product Specifications
Model Rated thermal power  (KW) Rated thermal power  (x104kcal/h) Design working temperature(≤°C) Rated working pressure(MPa) Thermal efficiency(≥%) System installation power(KW)
YLW-1400M/AII 1400 120 320 0.8 80 55
YLW-1800M/AII 1800 160 320 0.8 80 63
YLW-2400M/AII 2400 200 320 0.8 80 76
YLW-2800M/AII 2800 240 300 0.8 80 85
YLW-3500M/AII 3500 300 320 0.8 80 105
YLW-4200M/AII 4200 360 320 0.8 80 125
YLW-4600M/AII 6000 500 320 0.8 80 155
YLW-6000M/AII 7000 600 320 1 80 170
YLW-7000M/AII 8200 700 320 1 80 193
YLW-8200M/AII 4600 400 320 1 80 150
YLW-9400M/AII 9400 800 320 1 80 160
YLW-10500M/AII 10500 900 320 1 80 160
YLW-12000M/AII 12000 1000 320 1 80 260
YLW-14000M/AII 14000 1200 320 1 80 320
YLW-16500M/AII 16500 1400 320 1 80 380
YLW-18000M/AII 18000 1600 320 1 80 450
YLW-21000M/AII 21000 1800 320 1 81 520
YLW-23300M/AII 23300 2000 320 1 81 600
YLW-26000M/AII 26000 2200 320 1 81 700
YLW-29200M/AII 29200 2500 320 1 81 825
