RYQ series molten salt heater

RYQ series molten salt heater

Available industries: Chemical, fertilizer, melamine, alumina and other high temperature heating technology.

Available fuel: Bituminous coal, heavy oil, light oil, diesel, natural gas, liquefied gas, city gas;

Working pressure: 0.8-1.6 MPA;

Product thermal power: 1200-35000 KW;

Output water temperature: 450°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

molten salt heaters use molten potassium nitrate and sodium nitrite as heating media.

Molten salt heater will heat the powder salt over the melting point until the viscosity of the molten salt allows circulating pump works, after the whole system is under circulating condition, then feed then into the thermal fluid heater for further circulating rising temperature to make it to be recycling used. Normal media working temperature is 400-550°C, top working temperature could reach 600°C.

Feature

1, it can reach high temperature under low pressure, top temperature can reach 600°C.

2. It can keep stable heating temperature, and accurately adjust, with high thermal efficiency.

3. operating control and safety test devices are complete.

4. Good heat resistance ability.

5. heat transfer efficiency is two times of other thermal fluid heater.

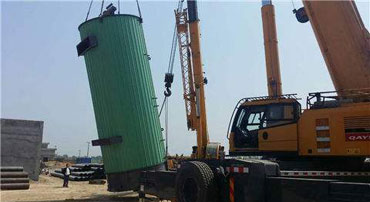

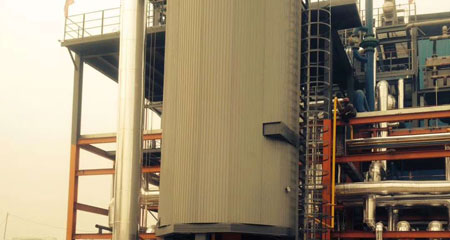

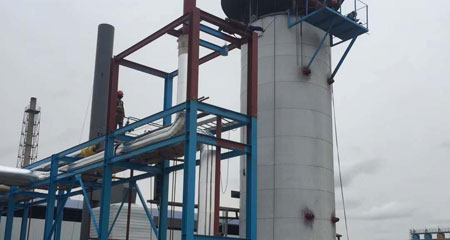

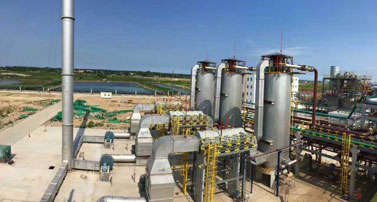

case image
Product Specifications
Model Rated thermal power(KW) Rated thermal power(x10 4kcal/h) Thermal efficiency(%) Design pressure (Mpa) Top media temperature(°C)
RYL/Y(Q)-100Y(Q) 1200 100 90 1 450
RYL/Y(Q)-200Y(Q) 2400 200 90 1 450
RYL/Y(Q)-300Y(Q) 3500 300 90 1 450
RYL/Y(Q)-500Y(Q) 6000 500 90 1 450
RYL/Y(Q)-750Y(Q) 9000 750 90 1 450
RYL/Y(Q)-1000Y(Q) 12000 1000 90 1 450
RYL/Y(Q)-1250Y(Q) 14000 1250 90 1 450
RYL/Y(Q)-1500Y(Q) 18000 1500 90 1 450
RYL/Y(Q)-1750Y(Q) 20000 1750 90 1 450
RYL/Y(Q)-2000Y(Q) 24000 2000 90 1 450
RYL/Y(Q)-2500Y(Q) 30000 2500 90 1 450
RYL/Y(Q)-3000Y(Q) 35000 3000 90 1 450
