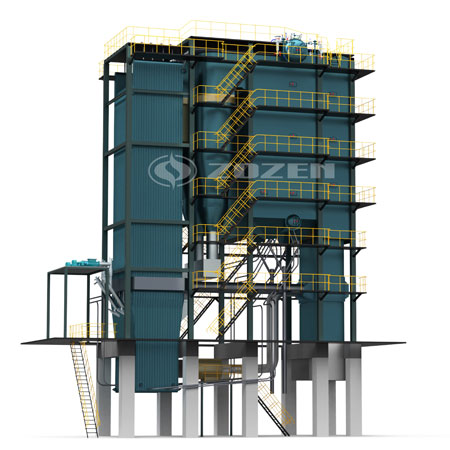

SHX series (CFB)circulating fluidized bed steam boiler

Available industries: heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, wine, rubber, hospital

Available fuel: Coal, Gangue, Biomass, Waste, Sludge;

Working pressure: 1.25-2.5 MPA;

Product thermal power: 10-75t/h;

Output water temperature: 194-225°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

Over view
Feature
Specifications

Inquire Now

CFBC technology, as a new type and matured high efficient, low-pollution and clean coal technology, it has many advantages that other combustion methods do not have.

CFB is a low-temperature combustion, so the helium oxide is far lower than the pulverized coal furnace, only 200ppm approximately. At the same time, it is feasible to actualize direct desulfurizing during combustion, and it has high desulfurization efficiency. The technical equipment is economic and simple. The initial investment for desulfurization and performance cost is a far lower than that of PC+FCD.Extensive fuel adaptability and high combustion efficiency, especially suitable for low calorific value inferior coal.

The exhausted cinder has better activeness, liable to actualize integrated utilization and free from secondary cinder pollution.Wide range for road adjustment, low load can be lower to 30% approximately of the rated load.

Feature

1. High efficiency, wear resistance, separation efficiency>=98%, effectively improve the combustion efficiency of the boiler thermal efficiency.

2. Large furnace, low flow rate design, allow pipe technology decrease erosive wear.

3. Bell hood is used to avoid fuel returning to wind chamber while the air is evenly distributed.

4. Through optimizing the fuel particle, the operating bed pressure can be as low as 3500 Pa, which effectively saves operating costs and greatly reduces the production of NOx.

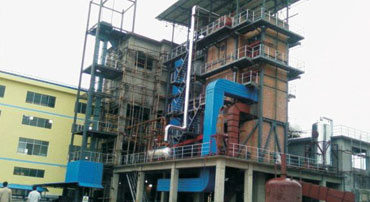

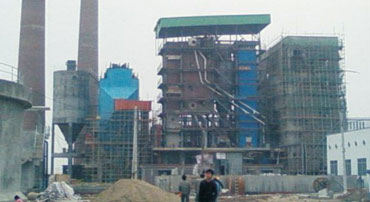

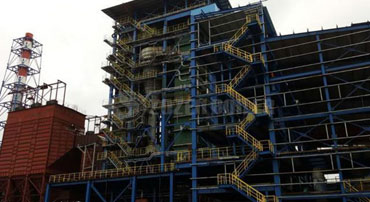

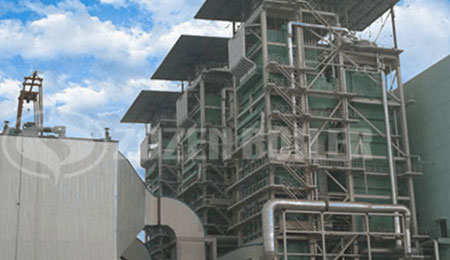

case image

Product Specifications

Model	SHX7-1.0/115/70 -AI	SHX10.5-1.0/115/70 -AI	SHX14-1.0/115/70 -AI	SHX17.5-1.0/115/70 -AI	SHX21-1.25/115/70-A	SHX29-1.25/130/70 -AI	SHX46-1.25/130/70 -AI	SHX58-1.25/130/70 -AI
Rated Thermal Power(MW)	7	10.5	14	17.5	21	29	46	58
Working Pressure (MPA)	1.0-1.6
Output Water Temperature(°C)	115/130
Return Water temperature (°C)	70
Available fuel	Kinds of Coal, Gangue, Biomass, Waste, Sludge
Thermal efficiency(%)	89	89	89	89	89	91	91	91
