Available industries: Centralized Heating.
Available fuel: Coal, Gangue, Biomass, Waste, Sludge;
Working pressure: 1.25-1.6 MPA;
Product thermal power: 58-116MW;
Output water temperature: 150/130°C;
Return water temperature: 90/70°C;
Shipping ports: Shanghai, Qingdao or Tianjin;
Delivery: 30-45 working days;

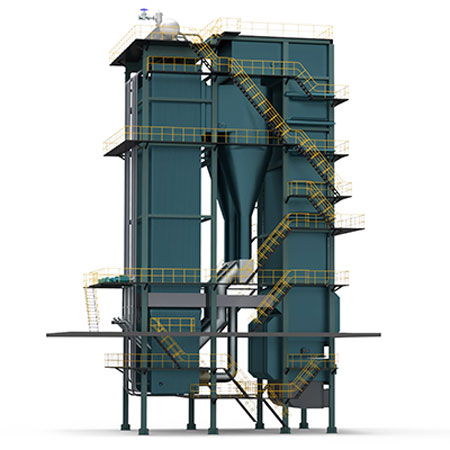

As a new mature high-efficiency and low-pollution clean coal technology, circulating fluidized bed combustion (CFBC) technology has many advantages that other combustion methods do not have. Circulating fluidized bed combustion is low-temperature combustion, so the helium oxide emission is much lower than that of pulverized coal furnace, only 200ppm. CFBC can desulfurize directly during the combustion process, and the desulfurization efficiency is high.
The technology and equipment are simple and economic, and the costs of its initial investment and operation are much lower than those of dry pulverized coal furnace and flue gas desulfurization (PC+FCD). Wide adaptability fuel and high combustion efficiency, especially suitable for low calorific value inferior coal.The discharged ash residue has good activity and is easy to be comprehensive utilized without secondary ash residue pollution. The load adjustment range is large, and the low load can be reduced to about 30% of the full load.
Feature
1. High temperature cyclone separator.
2. Large furnace design.
3. Bell jar type hood.
4. Low bed pressure operation.
| Model | DHX58-1.25/130/70 -AII |
DHX70-1.6/150/90 -AII |
DHX91-1.6/150/90 -AII |
DHX116-1.6/150/90 -AII |
|
| Rated thermal power(MW) | 58 | 70 | 91 | 116 | |
| Rated working pressure(MPa) | 1.25 | 1.6 | 1.6 | 1.6 | |
| Rated output water temperature(°C) | 130 | 150 | 150 | 150 | |
| Rated imported water temperature(°C) | 70 | 90 | 90 | 90 | |
| Available Fuel | Designed coal | AII | AII | AII | AII |
| Low heating value(KJ/KG) | 17700 | 17700 | 17700 | 17700 | |
