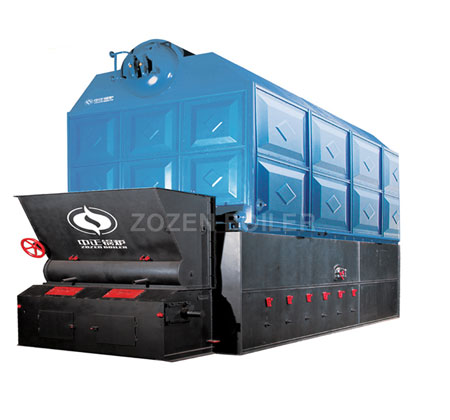

SZL series biomass fired steam boiler

Available industries: Heating, Chemical, Food, Tobacco, Textile, Print and dyeing, Feed, Medicine, Building materials, Wine, Hospital.

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust;

Working pressure: 1.0-2.5 MPA;

Thermal power: 4-35t/h;

Output water temperature: 184-350°C;

Shipping ports: Shanghai, Qingdao or Tianjin;

Delivery: 30-45 working days;

Over view
Feature
Specifications

Inquire Now

SZL series vertical dual drums chain grate water pipe steam and hot water boiler, adopts quick fitting and assembly structure.

The 4-6t/h boiler is of quick fitting pipe structure, exit shop after completely assembled, the boiler of 6-35t/h is composed of 2 main components. The upper assembled components is the body heat accepting part, and the lower assembled component is of combustion equipment. The former part of the boiler body is arranged an water cooling wall, the upper part of it is connected to boiler cylinder, and its lower part is connected to collective chest, so as to form a combustion room and absorb the radiated heat from the furnace. Its rear part is arranged with dense convection pipes between upper and lower boiler cylinders. The high temperature smog after combustion shall stand for twice returning flushing transversely to the heat accepting surfaces, and shall be introduced to coal saver singly arranged, and flow into duster and exhausted from chimney in the end.

Feature

1. The key processing technologies such as steel plate blanking, circling, drilling of drum and pipe plate are all adopt advanced CNC processing to reduce the assembly stress and prolong the service life of the boiler.

2. All the vertical and circular seams will be done 100% radiographic inspection.

3. According to different capacity, different numbers of independent wind bins are set from front to back of the grate.

4. The spreader feeds evenly to prevent tempering.

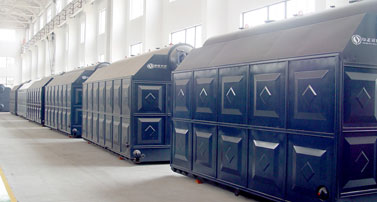

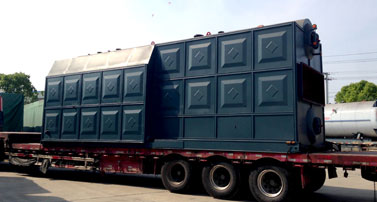

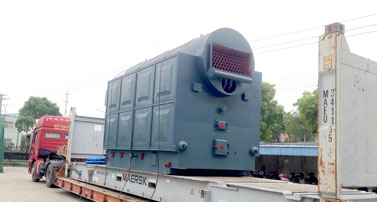

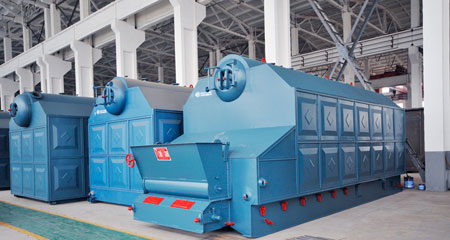

case image

Product Specifications

Model			SZL6-1.25-M SZL6-1.60-M SZL6-2.45-M		SZL8-1.25-M SZL8-1.60-M SZL8-2.45-M		SZL10-1.25-M SZL10-1.60-M SZL10-2.45-M		SZL20-1.25-M SZL20-1.60-M SZL20-2.45-M		SZL30-1.25-M SZL30-1.60-M SZL30-2.45-M
Rated thermal power(t/h)			6		8		10		20		30
Rated working pressure(MPa)			1.25/1.6/2.45		1.25/1.6/2.45		1.25/1.6/2.45		1.25/1.6/2.45		1.25/1.6/2.45
Steam temperature(°C)			194/204/225		194/204/225		194/204/225		194/204/225		194/204/225
Feed water temperature(°C)			20		20		20		20		20
available	Biomass		Biomass pellet fuel
	Low heating value(KJ/kg)		16240
Fuel consumption(kg/h)		1122		1488		1860		3600		4340
Thermal efficiency(%)		82.8		83.2		83.2		85.8		86.0
